SDPW Deflector Screw

Product Tabs

Product Details
SDPW
SDPW
SDPW Illustration
SDPW Illustration
SDPW Offset Driver Bit and Drill Bit
SDPW Offset Driver Bit and Drill Bit
SDPW Placing Offset Driver Bit
SDPW Placing Offset Driver Bit
SDPW Installation
SDPW Installation
SDPW Installation with Extension
SDPW Installation with Extension

The SDPW Deflector Screw is a premium structural fastening solution that provides a time‑saving solution for non‑load‑bearing walls to trusses and joists.

With tested lateral-load ratings the SDPW screw is value engineered for strength, installation speed and safety. The SDPW is designed for superior performance, and it’s backed by the best service and product support in the industry.

Material

Carbon Steel & Polymer

Finish

E-coat®

Features & Benefits
  • Pre-drill bit bores its own hole eliminating the screw from following the timber grain that could cause a miss-installation into the truss/joist.
  • Polymer sleeve allows for sliding during deflection, preventing squeaks
  • E-coat® for dry service applications and is compatible with treated timber
  • Offset driver bit (6-lobe) securely drives SDPW Deflector screw to predetermined screw depth
  • Extension allows for overhead installations eliminating the use of a ladder
  • Available in three lengths to suit various scenarios
  • US Patent 8,458,972 applies to Strong-Drive SDPW Solution
  • US Patent 9,523,383 applies to 152mm (6”) SDPW Deflector fasteners
Installation
  • Non-load bearing wall connections to truss/joists (including I-joists)
Model No. Table

Table 1. Characteristic Shear Loads (F1 and F2) for SDPW DEFLECTOR screws that connect a Non-Loadbearing/Non-Bracing
Internal Wall and the Supporting Member

Model

Size
(mm)

Thread Length
(mm)

Min. Embedment (mm)

Top Plate Thickness (mm)

Characteristic Lateral Load (N)

Offset = 0mm
Gap

Offset = 19mm
Gap

0mm

10mm

19mm

35mm

0mm

10mm

19mm

35mm

SDPW14312

3.5 x 89

51

13

35

2020

1345

1345

N/A

2020

940

N/A

N/A

SDPW14500

3.5 x 127

51

13

45

1675

1320

1320

1320

1695

980

620

425

SDPW19600

5.0 x 152

70

19

(2)35

2720

1885

1535

715

2720

1885

1535

N/A
  1. Characteristic shear loads are based on AS1649 analysis of tested connections in JD5 and are compatible with AS1720.1-2010. These represent normal duration of load. Adjust when other load durations govern.
  2. Screw spacing shall be determined by a designer.
  3. I-Joist shall have minimum flange thickness of 28.5mm.
  4. The SDPW DEFLECTOR screw is preferably driven with Simpson Strong-Tie offset driver bit for the 19mm offset installation.
  5. The non-loadbearing internal wall top plate-to-stud and top plate splice connections shall be fastened per applicable building code.
  6. A 0mm gap may result in load transfer into walls not designed to be loadbearing.
  7. Cells with “N/A” represent conditions that should not be built using the SDPW DEFLECTOR screws.

Table 2. Recommended Maximum SDPW DEFLECTOR Screw Spacing for 2400-mm and 3000-mm Tall Non-Loadbearing/Non-Bracing Internal Walls

Model

Size
(mm)

Thread Length
(mm)

Min. Embedment (mm)

Top Plate Thickness (mm)

On-Center Spacing (mm)

Offset = 0mm
Gap

Offset = 19mm
Gap

0mm

10mm

19mm

35mm

0mm

10mm

19mm

35mm

SDPW14312

3.5 x 89

51

13

35

1220 / 1220

N/A

1220 / 1220

N/A

N/A

SDPW14500

3.5 x 127

51

13

45

1220 /1220

1220 /1220

1220 /1175

SDPW19600

5.0 x 152

70

19

(2)35

N/A
  1. Spacings are maximums (mm on-center) based on a 240N/m2 horizontal pressure and normal duration of load. For other durations, adjust loads and spacing.
  2. In each table cell: spacing (mm) for 2400mm tall/3000mm tall wall.
  3. Cells with “N/A” represent conditions that should not be built using the SDPW DEFLECTOR screw.
  4. Spacing for wall heights between 2400mm and 3000mm may be interpolated.
  5. Spacing for other loads and wall heights shall be calculated using the characteristic loads of Table 1.

Specifications - SDPW

Model No.

Size
(mm)

Thread Length
(mm)

Head Dia. (mm)

Sleeve Length (mm)

Sleeve Colour

Thread

Point

Material & Finish

Box Qty

Drive Size

Replacement Bit

SDPW14312-R50

3.5 x 89

51

14

38

Blue

Coarse Threads

Type-17

Carbon Steel Polymer

E-coat®

50

T-25, 6-lobe

BIT25T-2-RC3

SDPW14312MB

500

SDPW14500-R50

3.5 x 127

51

14

76

Orange

50

SDPW14500MB

500

SDPW19600-R50

5.0 x 152

70

16.5

76

Grey

50

T-40, 6-lobe

BIT40T-134-RC3

SDPW19600MB

400

Note: 50 packs are 6 per carton and include (1) offset driver bit and (1) 3/8” predrill bit. Bulk packs include (2) offset driver bits and (2) 3/8” predrill bits.

Specifications - SDPW Accessories

Model No.

Name

Description

Packs/Ctn

PWKIT25T

T25 Bit Kit

1 x Quick Release Predrill Bit (3/8” x 5”) / (9.5mm x 127mm)
2 x T25 Offset Driver Bits

12

PWKIT40T

T40 Bit Kit

1 x Quick Release Predrill Bit (3/8” x 5”) / (9.5mm x 127mm)
2 x T40 Offset Driver Bits

12

PW18EXT

Extension

1 x Extension 450mm

15



NOTE:

  1. Offset Driver Bit included in every pack and required
  2. Drill Bit 3/8” (9.5 mm) x 5” (127mm) included in every pack and required
  3. Extension 450mm PW18EXT (sold separately)
Brochures & Catalogues

Brochures and Catalogues

PDF icon Flyer - SDPW Deflector Screw
Installation Guides

Installation Guides

PDF icon SDPW Installation Guides
Technical Data & Docs

Technical Data Sheets

PDF icon Technical Data Sheet - SDPW

Warranty

Warranty

CAD Library

Download

jpg:

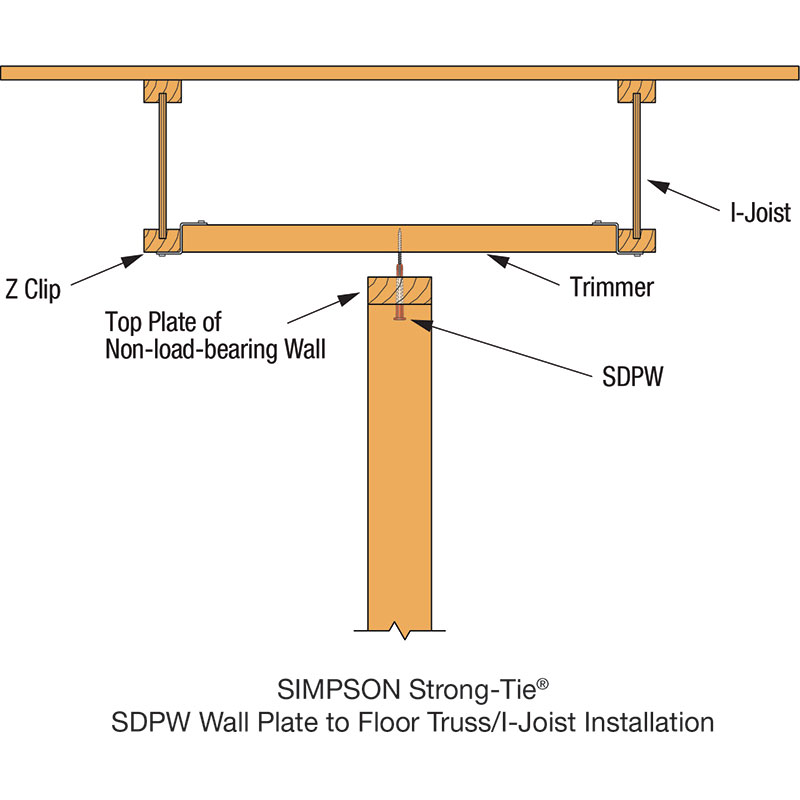

Image icon SDPW_Detail_Wall_Plate-to-Truss_Installation.jpg
