Self Drilling Siding Screw
Self Drilling Siding Screw
Self Drilling Siding Screw
Self Drilling Siding Screw

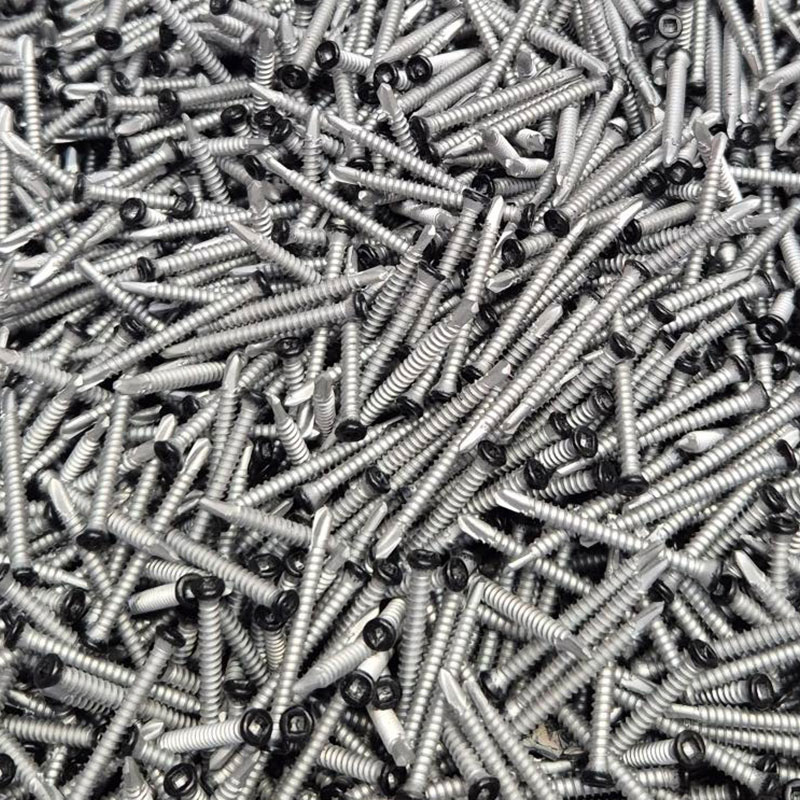

The self-drilling siding screw is designed for attaching wood siding, wood panels and metal trim to steel studs. These screws are made from heat-treated Type 410 stainless steel.

Material & Finish
  • 410 Stainless Steel

NOTE: Type 410 stainless steel can be hardened through heat treatment, giving it the ability to drill through metal. It does not offer the same level of corrosion resistance as either Type 316 or Type 305 stainless steel.

Features & Benefits
  • Trim head for less noticeable installation
  • Durable black painted head
  • Fine Threads
  • #3 drill point
  • #1 square drive (requires bit model BIT1S-2-R2)
Applications

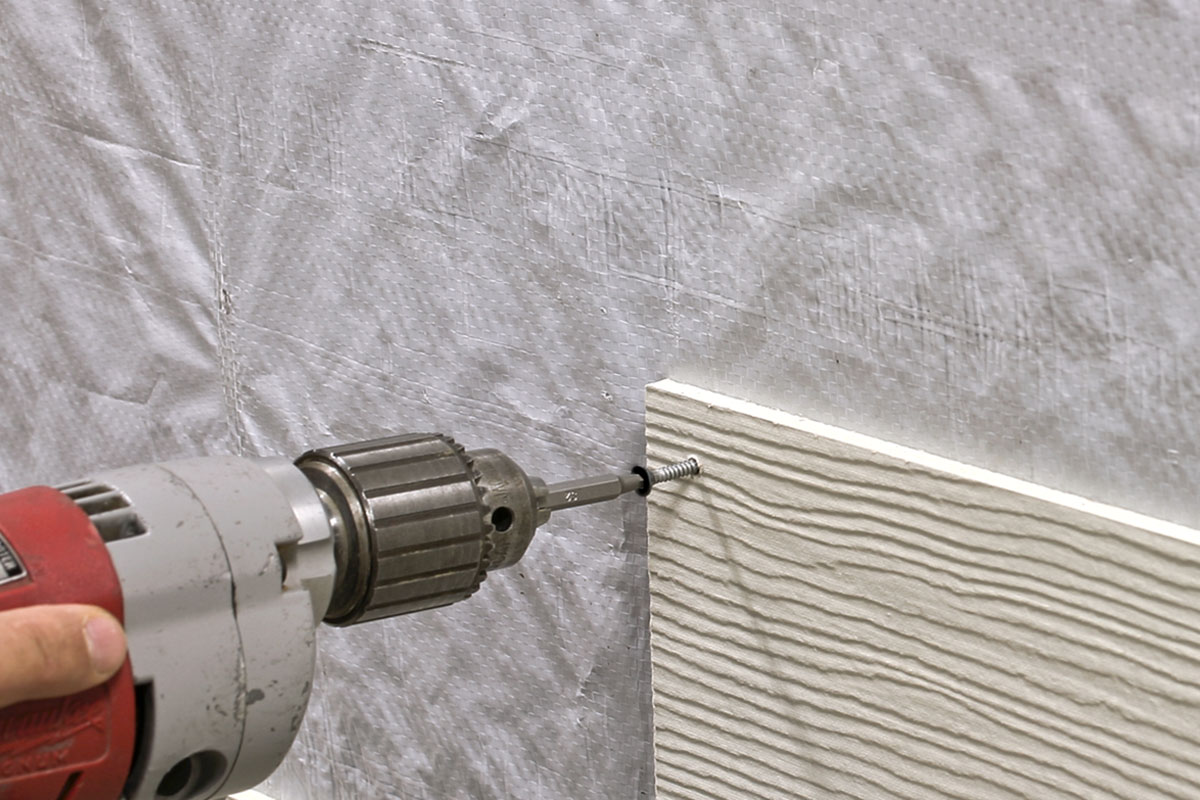

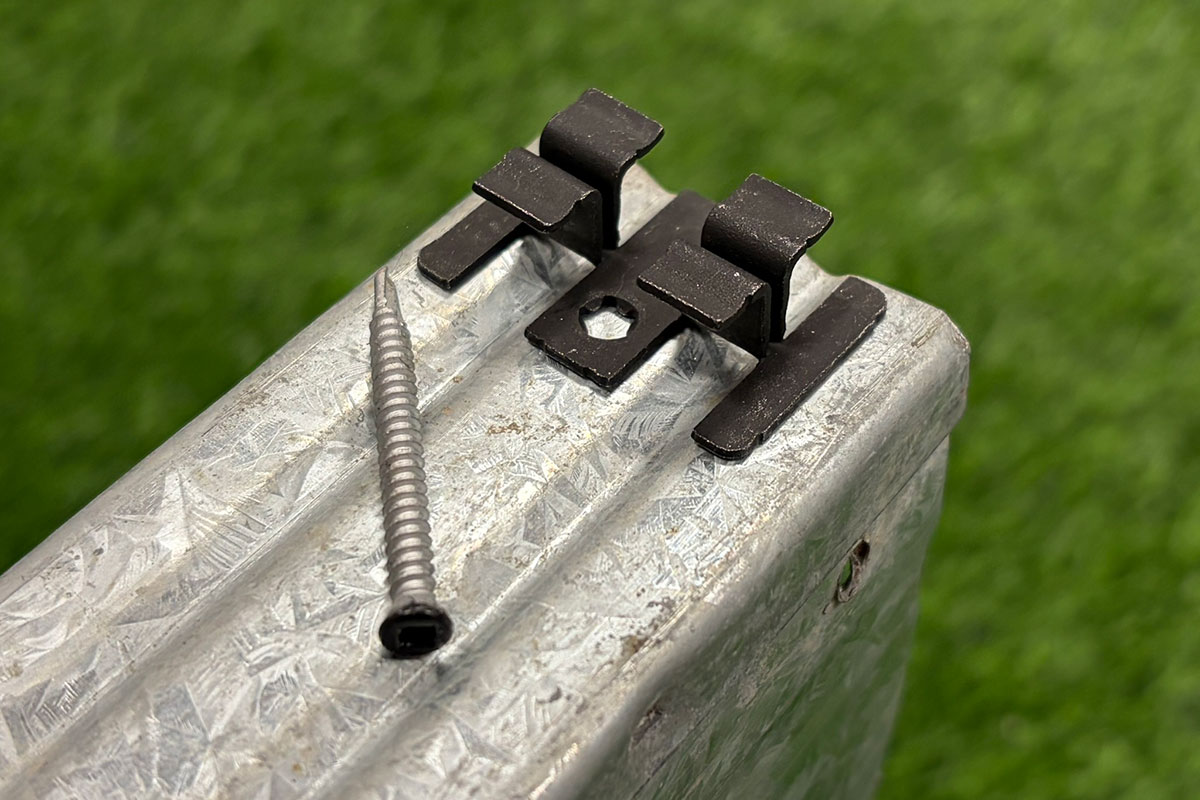

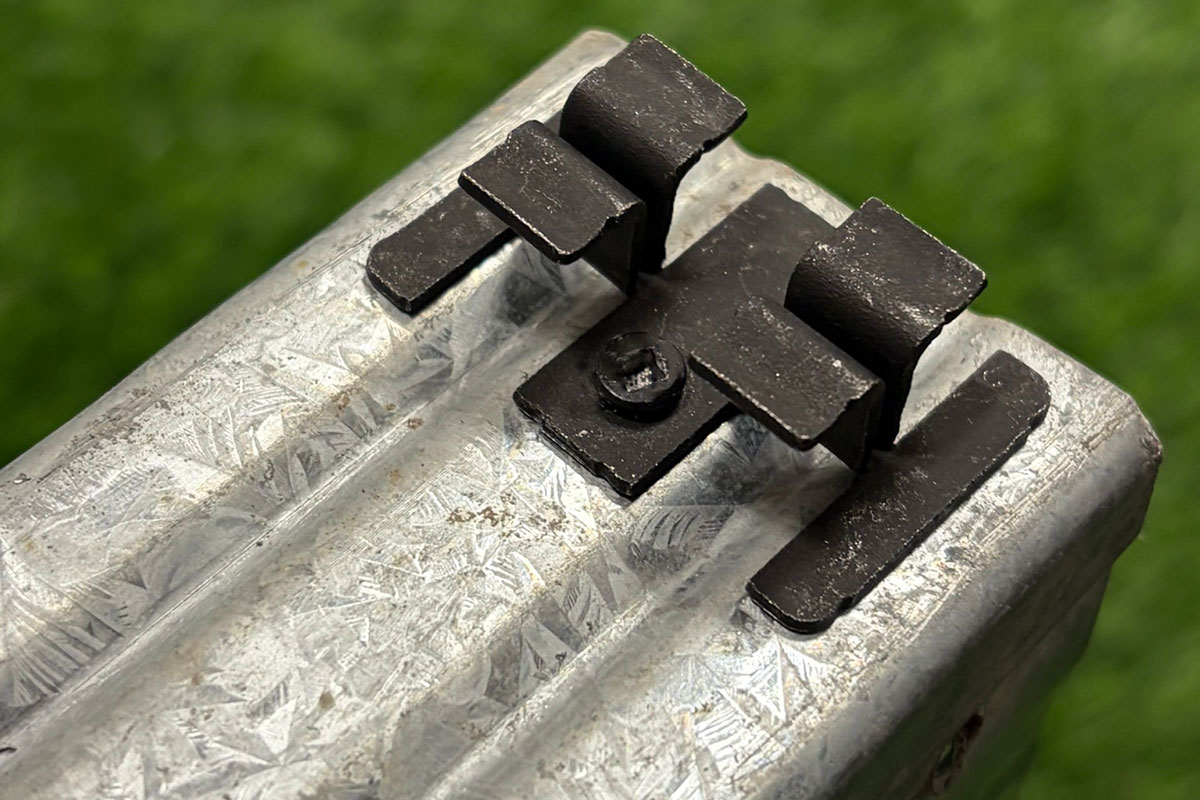

  • Attach timber siding, timber panels and steel trim to steel studs
  • Steel Frame
  • Recommended steel thickness 0.8mm – 2.4mm
  • Max Grip Length - 29.7mm. Note: Grip length includes side member, steel thickness, air gap (if any) and allowance for three threads protruding through the steel.
Model No. Table

Specifications

Model No.

Size

Thread

Point

Material & Finish

Box Qty

Drive Size

Drive Size

F07T162TDPBK

7G x 41mm

Fine Threads 19 TPI

#3 Drill Point

410 Stainless Steel

350

#1 Square Drive

BIT1S-2-R2

F07T162TDBBK

7G x 41mm

Fine Threads 19 TPI

#3 Drill Point

410 Stainless Steel

5,000

#1 Square Drive

BIT1S-2-RC3



PLEASE NOTE: Pre-drilling and countersink may be necessary at ends, butt joints, and on applications where denser material is used. Follow the board manufacturer's recommendation where applicable. WARNINGS: Always wear PPE during installation. Corrosive environments, exposure to water, salt air, or chemicals (including some wood preservatives) may cause early failure. Click here for Corrosion Information, Important Information & General Notes.
