BSHSD Bi-METAL Screw Hardwood-to-Steel (Loose)

Product Tabs

Product Details

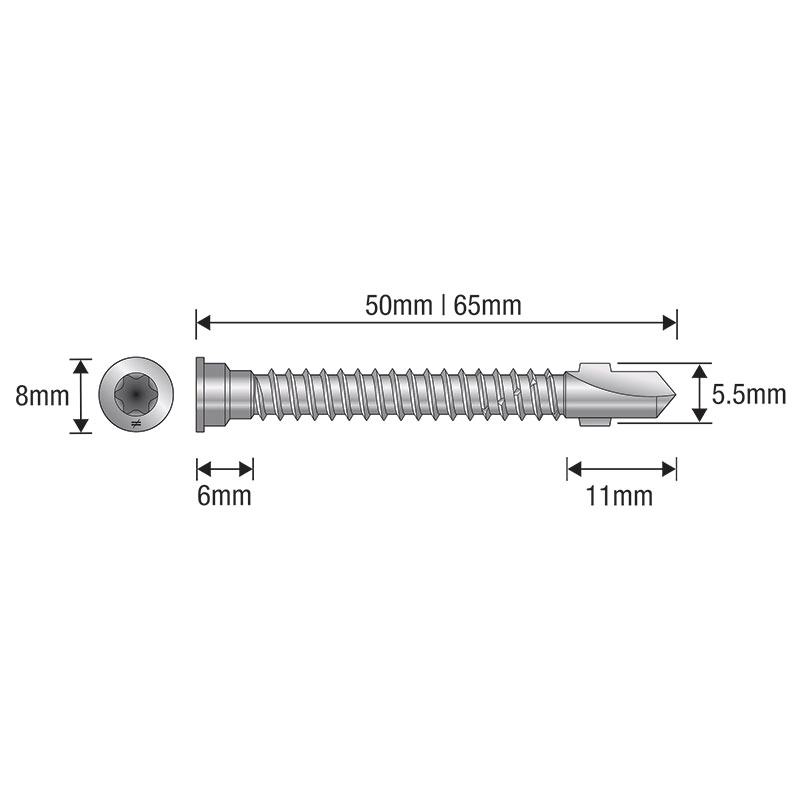

BSHSD_Bi-Metal Screw_Hardwood-to-Steel

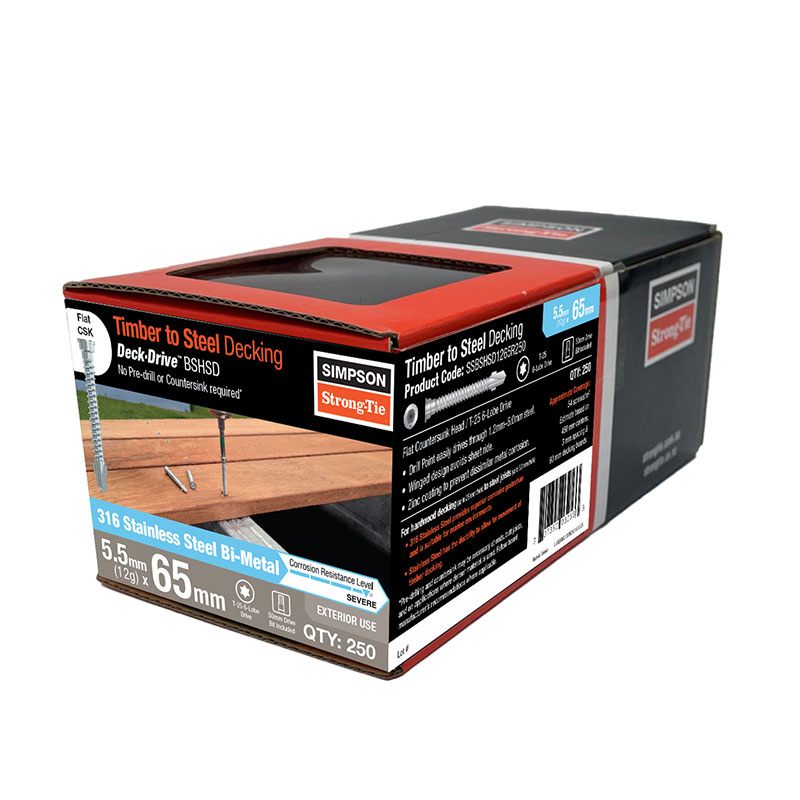

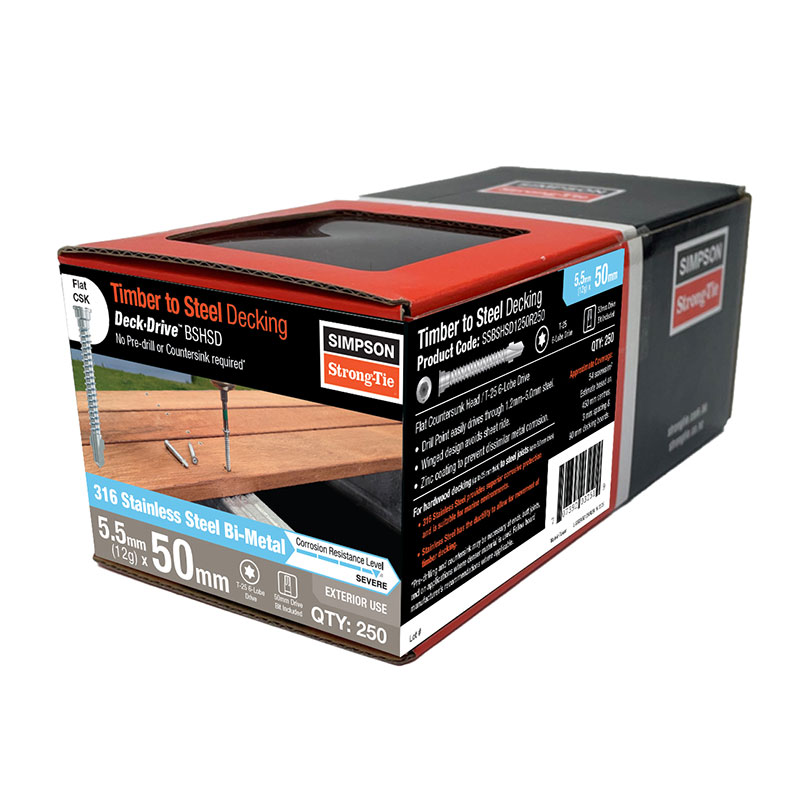

BSHSD_Bi-Metal Screw_Hardwood-to-Steel Packaging

BIT25T-2-R2

The BSHSD Bi-Metal Hardwood-to-Steel Decking Screw combines a hardened steel drill point with a 316 stainless steel body, delivering exceptional corrosion resistance and reliable performance in exterior decking applications. Its bi-metal construction enables fast installation into steel without the need for pre-drilling, helping to reduce installation time while maintaining the durability of stainless steel.

Material

316 Stainless Steel (Carbon Steel Tip)

Features & Benefits

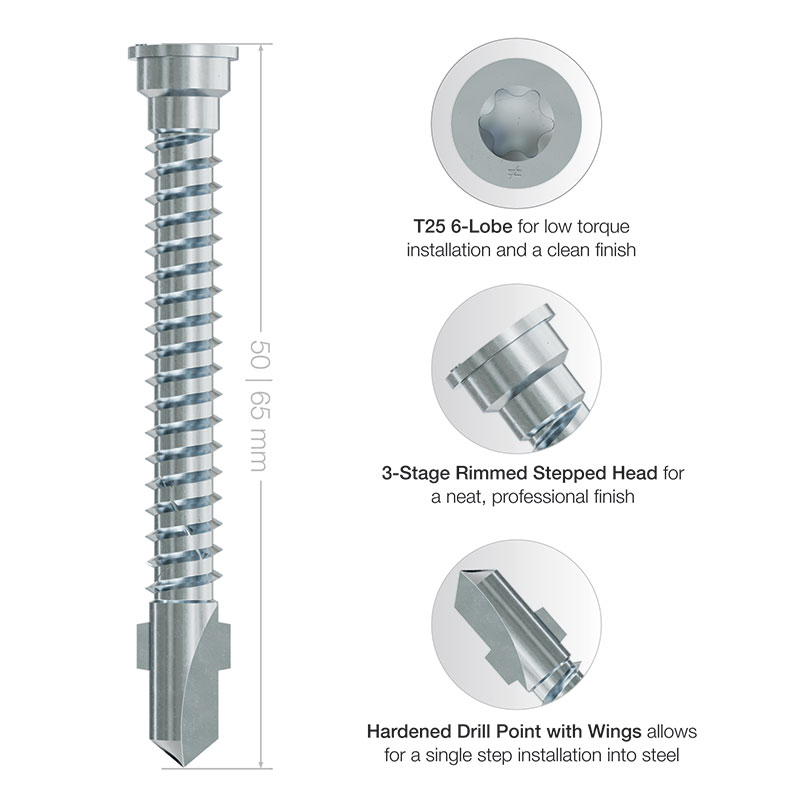

3-stage rimmed stepped head delivers a neat, professional finish.
Bi-metal construction features a carbon steel drill tip with wings welded to a corrosion-resistant stainless steel body, allowing single-step installation of most hardwood decking into steel (1.2-5.0 mm steel thickness).
14 TPI thread ensures strong, reliable holding power in steel.
Type 316 stainless steel body provides exceptional corrosion resistance and accommodates the natural movement of timber decking.
Zinc coating to avoid dissimilar metal corrosion
T25 6-lobe drive reduces driver-bit cam-out for easier installation and a superior finished appearance.

Installation

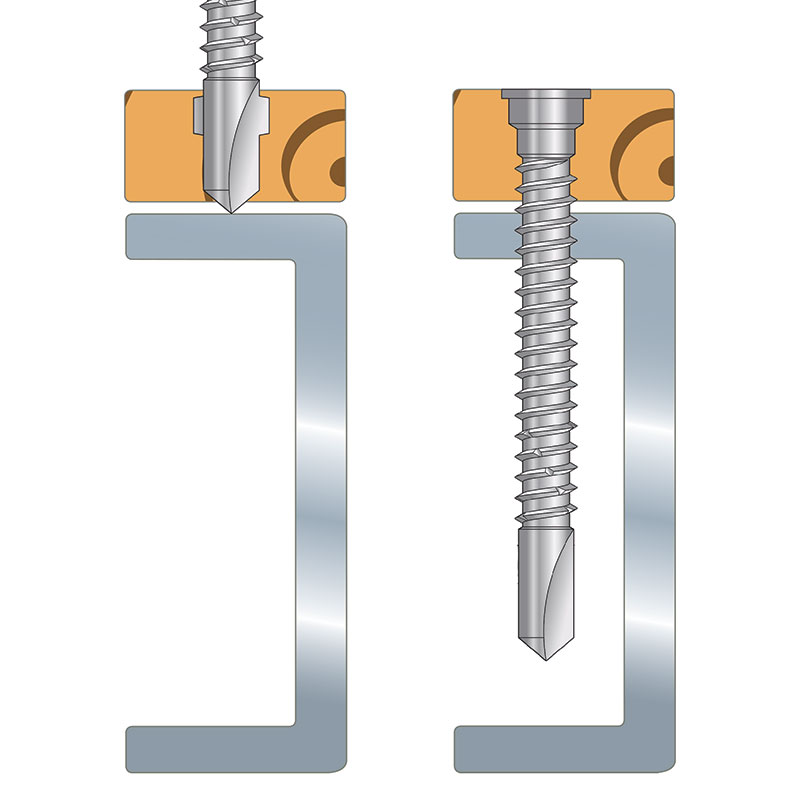

Allows direct fastening of most hardwood decking to steel (1.2-5.0mm thick) without pre-drilling.
Maximum decking board thickness: 25mm for the 50mm screw; 40mm for the 65mm screw.
Suitable for use with a single layer of steel only. Do not use in overlapped steel sections or where multiple steel layers must be pierced. Do not apply excessive driving force, as this may damage the screw.
Pre-drilling and countersinking may be required at board ends, butt joints, or in applications using denser timber species. Follow the decking board manufacturer's recommendations where applicable. Ensure a minimum of 2-3 threads are engaged in the steel substrate.

Applications

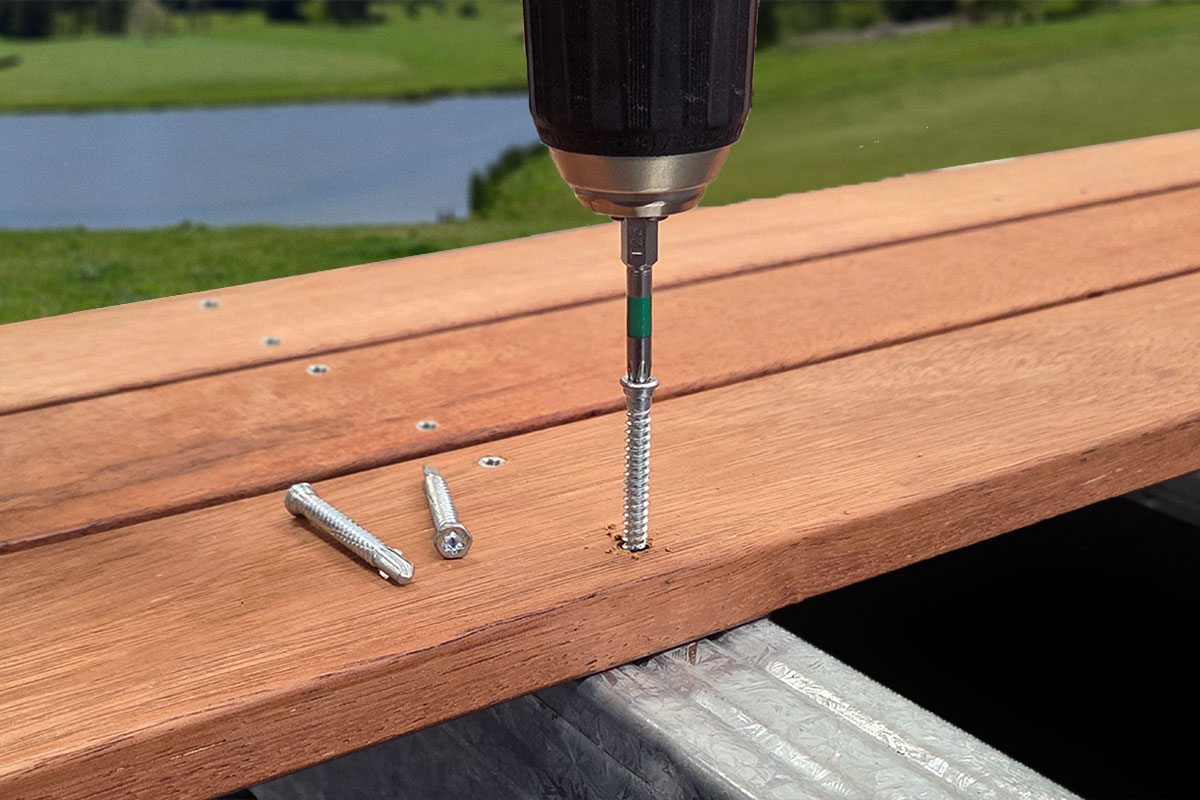

Hardwood-to-Steel Decking
Steel Frame Applications
This screw is available for hand-drive only

Decking Calculator

Model No. Table

Specifications - Hand-drive

Model No.	Size	Thread	Point	Material & Finish	Box Qty	Drive Size	Replacement Bit
SSBSHSD1250R250	12G x 50mm	14TPI	Drill Point	316 Stainless Steel	250	T-25, 6-lobe	BIT25T-2-R2
SSBSHSD1265R250	12G x 65mm	14TPI	Drill Point	316 Stainless Steel	250	T-25, 6-lobe	BIT25T-2-R2

PLEASE NOTE:

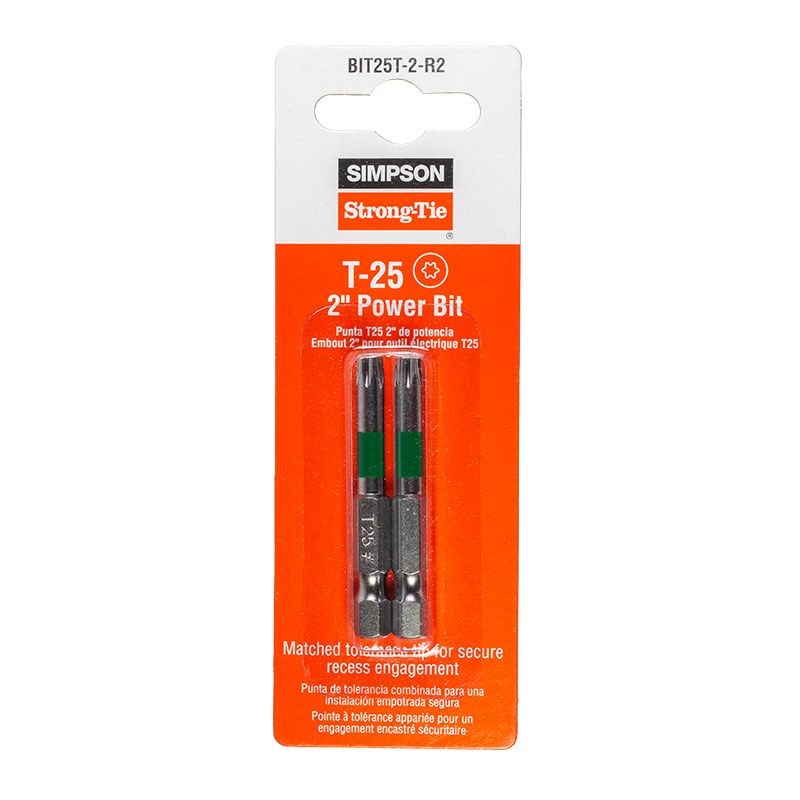

• Replacement Bit: BIT25T-2-R2 is a 2" power bit pack containing two T-25 bits.

• Pre-drilling and countersink may be necessary at ends, butt joints, and on applications where denser material is used. Follow the board manufacturer's recommendation where applicable. WARNINGS: Always wear PPE during installation. Corrosive environments, exposure to water, salt air, or chemicals (including some wood preservatives) may cause early failure. Click here for Corrosion Information, Important Information & General Notes.
